HARDWARE · 2024

Drone Soccer System

Competitive drone soccer ball design. Focused on impact resistance, protective cage geometry, and rapid repairability during matches.

PrototypingDurabilitySport
Drone Soccer SystemFIG. 01

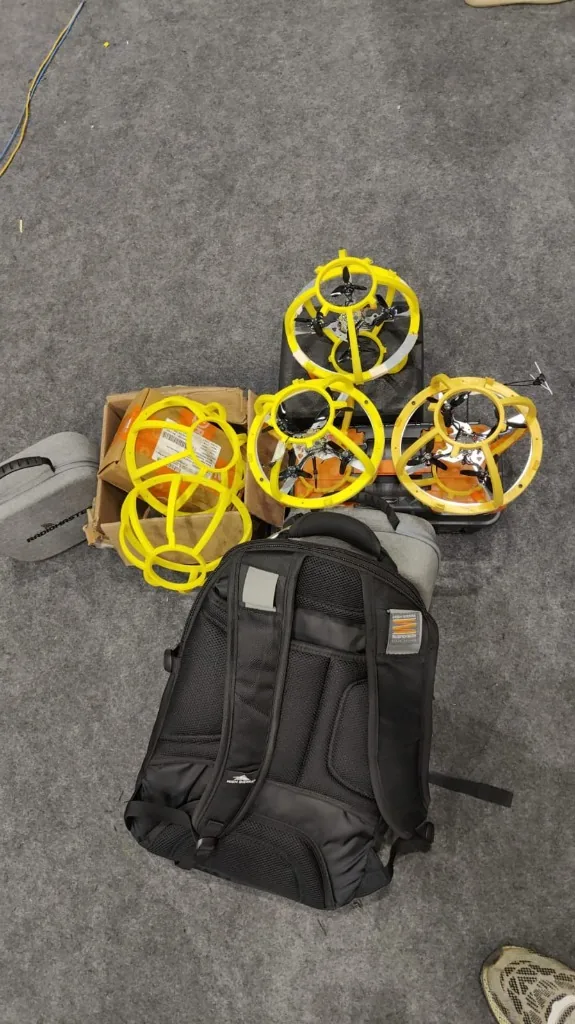

fig. 01 — cage geometry — flexible sphere, field-repairable
note 01.

Fifteen iterations of getting hit

Every revision returned to the field to prove its durability in actual matches.
