SOFTWARE · 2025

TESTLAB: Internal Testing Database

Security-hardened internal testing database for engineering teams. Manages test plans, test cases with forking, test runs, issues, and compliance archives with full RBAC and audit logging.

Next.jsPostgreSQLPrismaRBACTypeScript
TESTLAB: Internal Testing DatabaseFIG. 01

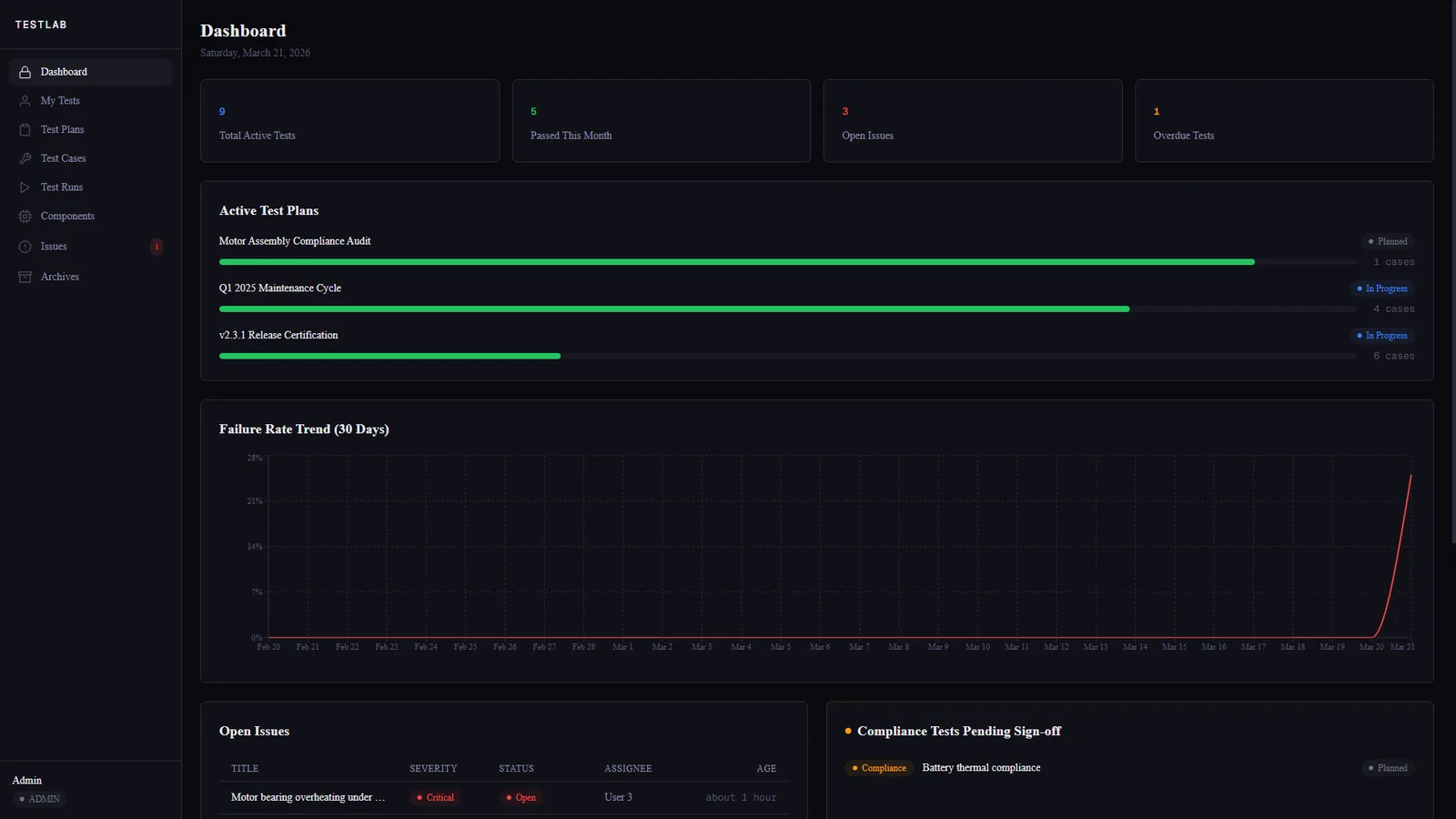

fig. 01 — dashboard — active plans, failure trends, pending sign-off
note 01.

Forks with reasons

Each parameter variation keeps traceability to the canonical test case.

note 02.

Archives that cannot be edited

Completed plans become immutable compliance records.
